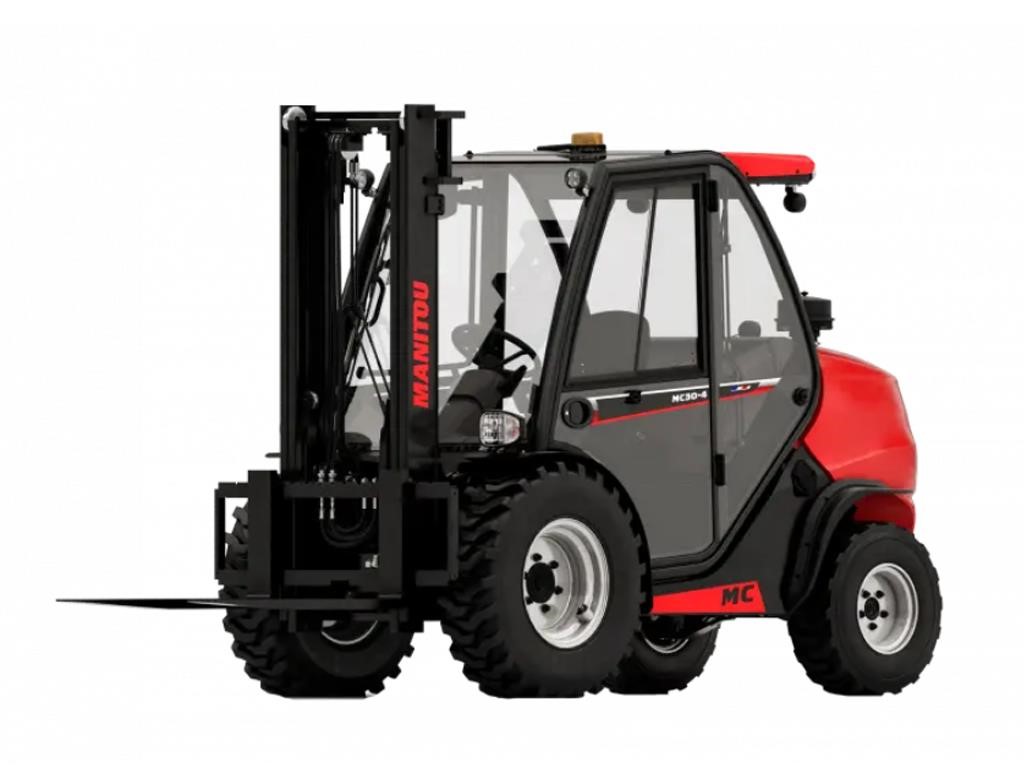

MANITOU FORKLIFT TRUCK — MC 30-4
The MC 30-4 forklift truck offers exceptional crossing capabilities. Powerful, compact, maneuverable and all-terrain, it goes where other machines don’t go. Take advantage of its performance to handle your loads with ease whatever the terrain conditions (rough, uneven, muddy and slope-crossing surfaces). The MC 30-4 truck adapts to all your applications thanks to its great versatility. Optimize your operations and work in complete safety with the Manitou MC 30-4 rough-terrain forklift truck!
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
Specifications
- Wheels - Tires type: Pneumatic
- Engine - Fuel consumption according to VDI cycle:
- Wheels - Number of front wheels / rear wheels: 2 / 2
- Weight - Weight on front axle (laden) / rear axle (laden): 14661 lbs / 1742 lbs
- Dimensions - Fork carriage ISO 2328 (class/form) A/B: FEM 3A
- Performance - Travel speed (laden/unladen): 7 mph / 15 mph
- Performance - Lowering speed (laden / unladen): 2 ft/s / 1 ft/s
- Dimensions - Overall height of standard overhead guard:
- Dimensions - Overall width: 57 in
- Technical Characteristics - Max. capacity: 6614 lbs.
- Performance - Drawbar pull (Laden): 3100 daN
- Dimensions - Ground clearance at center of wheelbase: 12 in
- Dimensions - Tilt of Mast Forward (deg) / Backward (deg): 12 / 10
- Dimensions - Ground clearance below mast: 12 in
- Dimensions - Forks section / width / length: 2 in x 4 in / 47 in
- Miscellaneous - Oil flow rate for attachments: 11 US gpm
- Dimensions - Height of overhead guard (cabin) / Overall height of low overhead guard (Buggie version): 85 in / 78 in
- Technical Characteristics - Model Name: MC 30-4 ST5
- Performance - Gradeability (laden): 46 %
- Engine - Number of cylinders / Capacity of cylinders: 3 - 111 in³
- Dimensions - Length to face of forks: 121 in
- Miscellaneous - Workig hydraulic pressure for attachments:
- Dimensions - Aisle width for 800 x 1200 pallet lengthways:
- Weight - Weight on front axle (Unladen) / rear axle (Unladen):
- Performance - Lifting speed (laden / unladen): 2 ft/s / 2 ft/s
- Miscellaneous - Sound level at the driver's ear according to DIN 12 053: 79 dB
- Weight - Service Weight: 9789 lbs
- Technical Characteristics - Manufacturer: Manitou
- Technical Characteristics - Load distance, center of drive axle to fork: 25 in
- Dimensions - Seat height/stand height: 43 in
- Miscellaneous - Type of drive control: Electronic
- Performance - Service brake: Hydraulic brakes by loss of pressure
- Dimensions - Internal turning radius (over types):
- Technical Characteristics - Operator type: Seated
- Wheels - Rear wheel gauge: 46 in
- Wheels - Dimensions of front wheels: 12,5/80-18/12 SL R4
- Engine - Rated speed: 2700 rpm
- Technical Characteristics - Power Source: Diesel
- Dimensions - Fork carriage width:
- Engine - Engine brand / model / norm: Kubota / D1803 CRT E5B / Stage V
- Dimensions - Aisle width for 1000 x 1200 pallet widthways: 215 in
- Wheels - Dimensions of rear wheels: 27x10-12 SKS
- Engine - Engine power according to ISO 1585: 37 kW
- Dimensions - Overall length: 167 in
- Dimensions - Height of towing bar (coupling height):
- Wheels - Number of drive wheels: 4
- Technical Characteristics - Load center of gravity: 20 in
- Wheels - Front wheel gauge: 46 in
- Dimensions - Turning radius: 135 in
- Technical Characteristics - Wheelbase: 75 in
