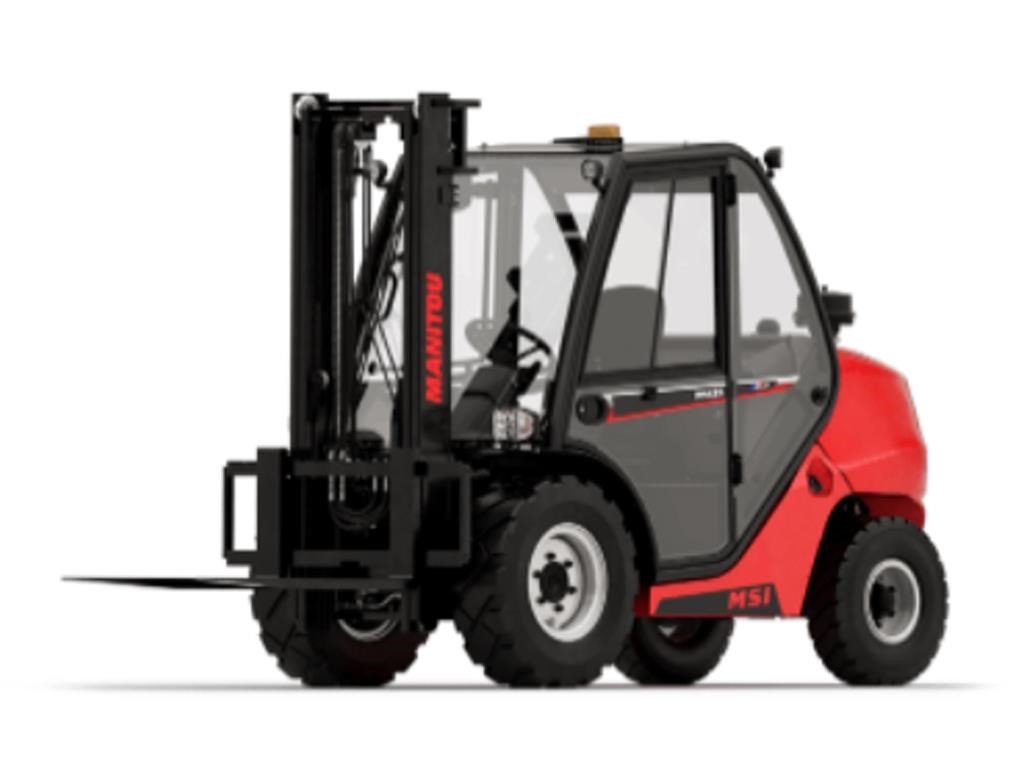

MANITOU FORKLIFT TRUCK — MSI 25 ST5
The semi-industrial forklift MSI 25 has been designed to handle all types of loads, up to 2500 kg. Handy, robust and equipped with tires adapted to your application, it allows you to transport your goods whatever your constraints: unstabilized or degraded grounds, slippery grounds, high-precision work requiring regulated power… For your comfort, it has intuitive controls that make driving easier. Thanks to its overall width and wheelbase, which are greater than those of an industrial forklift truck, the MSI 25 helps you handle long loads or several pallets at the same time in complete safety.
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
Specifications
- Dimensions - Fork carriage ISO 2328 (class/form) A/B: FEM 2A
- Weight - Weight on front axle (laden) / rear axle (laden): 12632 lb / 1477 lb
- Wheels - Number of drive wheels: 2
- Engine - Engine brand / model / norm: Kubota / D1803 CRT E5B / Stage V
- Dimensions - Overall width: 52 in
- Wheels - Front wheel gauge: 41 in
- Performance - Service brake: Hydraulic brakes by loss of pressure
- Dimensions - Overall length: 165 in
- Weight - Weight on front axle (unladen) / rear axle (unladen): 3505 lb / 5093 lb
- Dimensions - Tilt of Mast Forward (deg) / Backward (deg): 10 / 12
- Miscellaneous - Type of drive control: Electronic
- Technical Characteristics - Operator type: Seated
- Miscellaneous - Workig hydraulic pressure for attachments (bar): 3191 PSI
- Dimensions - Forks section / width / length: 2 in x 4 in / 47 in
- Dimensions - Fork carriage width: 50 in
- Dimensions - Aisle width for 1000 x 1200 pallet widthways: 183 in
- Engine - Number of cylinders / Capacity of cylinders: 3 - 111 in³
- Performance - Lifting speed (unladen): 2 ft/s / 2 ft/s
- Technical Characteristics - Max. capacity: 5512 lbs
- Miscellaneous - Oil flow rate for attachments: 12 US gpm
- Performance - Gradeability - laden / unladen: 31 %
- Weight - Service Weight: 8598 lb
- Performance - Drawbar pull (unladen): 1900 daN
- Engine - Rated speed: 2700 rpm
- Technical Characteristics - Wheelbase: 75 in
- Dimensions - Seat height/stand height: 38 in
- Miscellaneous - Measured/ Guaranteed mean noise level at the ear of the operator : 81 dB
- Dimensions - Turning radius: 103 in
- Dimensions - Aisle width for 800 x 1200 pallet lengthways:
- Wheels - Tires type: Pneumatic
- Dimensions - Ground clearance at center of wheelbase: 9 in
- Engine - Engine power according to ISO 1585: 37 kW
- Dimensions - Height of overhear guard (cabin): 82 in
- Wheels - Number of front wheels / rear wheels: 2 / 2
- Technical Characteristics - Load distance, center of drive axle to fork: 24 in
- Dimensions - Internal turning radius (over types):
- Wheels - Rear wheel gauge: 44 in
- Performance - Travel speed (laden/unladen): 13 mi/h / 13 mi/h
- Dimensions - Ground clearance below mast: 10 in
- Technical Characteristics - Model Name: MSI 25 ST5
- Dimensions - Height of towing bar (coupling height):
- Dimensions - Overall height of standard overhead guard:
- Technical Characteristics - Manufacturer: Manitou
- Wheels - Dimensions of rear wheels: 7.00-12/12 ED PLUS
- Dimensions - Length to face of forks: 118 in
- Performance - Lowering speed (unladen): 2 ft/s / 0.98 ft/s
- Wheels - Dimensions of front wheels: 300-15/18 6T P43
- Technical Characteristics - Load center of gravity: 20 in
- Technical Characteristics - Power Source: Diesel
