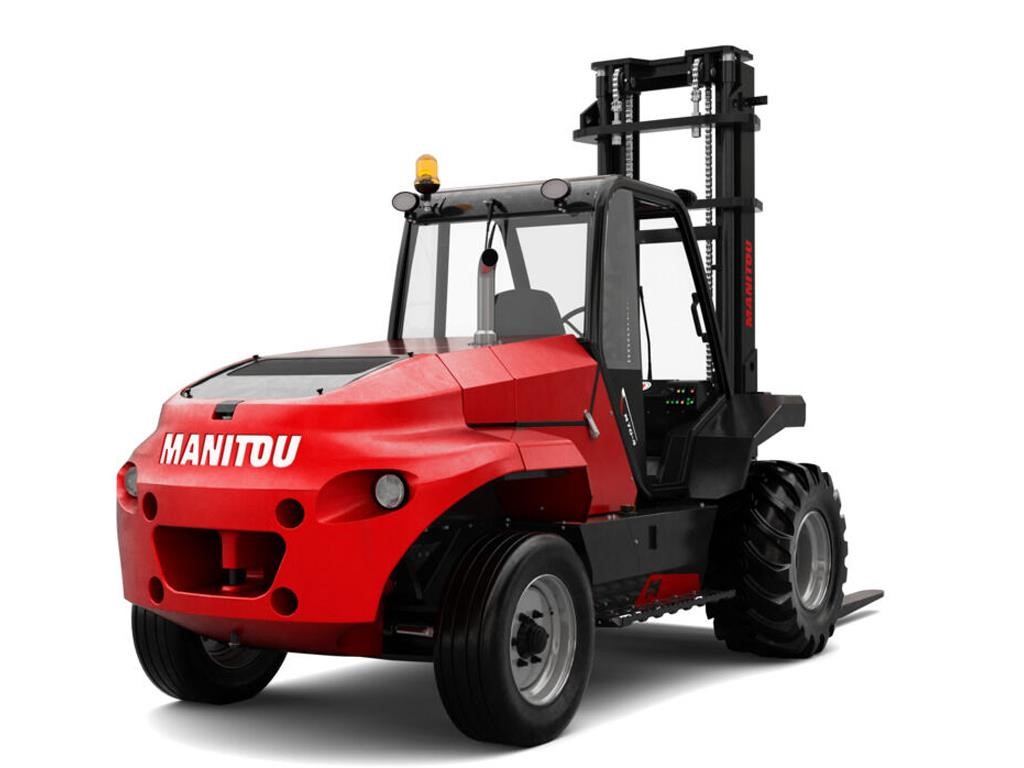

MANITOU FORKLIFT TRUCK — M 70-2 H
The M 70-2 H with its panoramic cabin, ergonomic levers and load shock absorber is easy to use in its preferred field: off-roading! Its engine, crossing capacity and hydrostatic transmission guarantee this forklift truck increased productivity on all terrains. The M 70-2 H offers 7000 kg rated capacity even on the most uneven ground.
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
Specifications
- Performance - Gradeability - laden / unladen: 45 % / 27 %
- Dimensions - Ground clearance below mast: 12 in
- Engine - Rated speed: 2500 rpm
- Dimensions - Seat height/stand height: 58 in
- Technical Characteristics - Model Name: M 70-2 H
- Technical Characteristics - Operator type: Seated
- Wheels - Tires type: Pneumatic
- Wheels - Dimensions of rear wheels: 265/70R19,5 6T P30 HT3
- Technical Characteristics - Load center of gravity: 24 in
- Weight - Weight on front axle (unladen) / rear axle (unladen): 8907 lbs / 12875 lbs
- Wheels - Rear wheel gauge: 61 in
- Performance - Lowering speed (unladen): 1 ft/s / 1 ft/s
- Dimensions - Internal turning radius (over types):
- Technical Characteristics - Manufacturer: Manitou
- Dimensions - Overall length: 224 in
- Miscellaneous - Oil flow rate for attachments: 80 l/min
- Dimensions - Overall height of standard overhead guard:
- Technical Characteristics - Max. capacity: 15432 lbs
- Dimensions - Turning radius: 165 in
- Dimensions - Aisle width for 800 x 1200 pallet lengthways: 264 in
- Weight - Weight on front axle (laden) / rear axle (laden): 32968 lbs / 4246 lbs
- Performance - Travel speed (laden/unladen): 7 mph / 14 mph
- Engine - Engine power according to ISO 1585: 55 kW
- Dimensions - Ground clearance at center of wheelbase: 16 in
- Dimensions - Fork carriage ISO 2328 (class/form) A/B: FEM4
- Technical Characteristics - Wheelbase: 98 in
- Dimensions - Tilt of Mast Forward (deg) / Backward (deg): 15 / 15
- Performance - Service brake: Hydraulic
- Wheels - Number of drive wheels: 2
- Technical Characteristics - Load distance, center of drive axle to fork: 32 in
- Miscellaneous - Workig hydraulic pressure for attachments : 3336 PSI
- Dimensions - Overall width: 85 in
- Dimensions - Aisle width for 1000 x 1200 pallet widthways:
- Miscellaneous - Sound level at the driver's ear according to DIN 12 053: < 78 dB(A)
- Dimensions - Height of towing bar (coupling height):
- Wheels - Front wheel gauge: 67 in
- Technical Characteristics - Power Source: Diesel
- Engine - Number of cylinders / Capacity of cylinders: 4
- Performance - Drawbar pull (unladen): 8060 daN / 2930 daN
- Dimensions - Fork carriage width: 69 in
- Dimensions - Length to face of forks: 166 in
- Weight - Service Weight: 21782 lbs
- Wheels - Number of front wheels / rear wheels: 2 / 2
- Dimensions - Height of overhear guard (cabin): 97 in
- Engine - Fuel consumption according to VDI cycle:
- Performance - Lifting speed (unladen): 1 ft/s / 1 ft/s
- Engine - Engine brand / model / norm: Deutz / TD 3.6
- Wheels - Dimensions of front wheels: 18R19,5 8T N 20XF
- Dimensions - Forks section / width / length: 3 in x 6 in / 59 in
