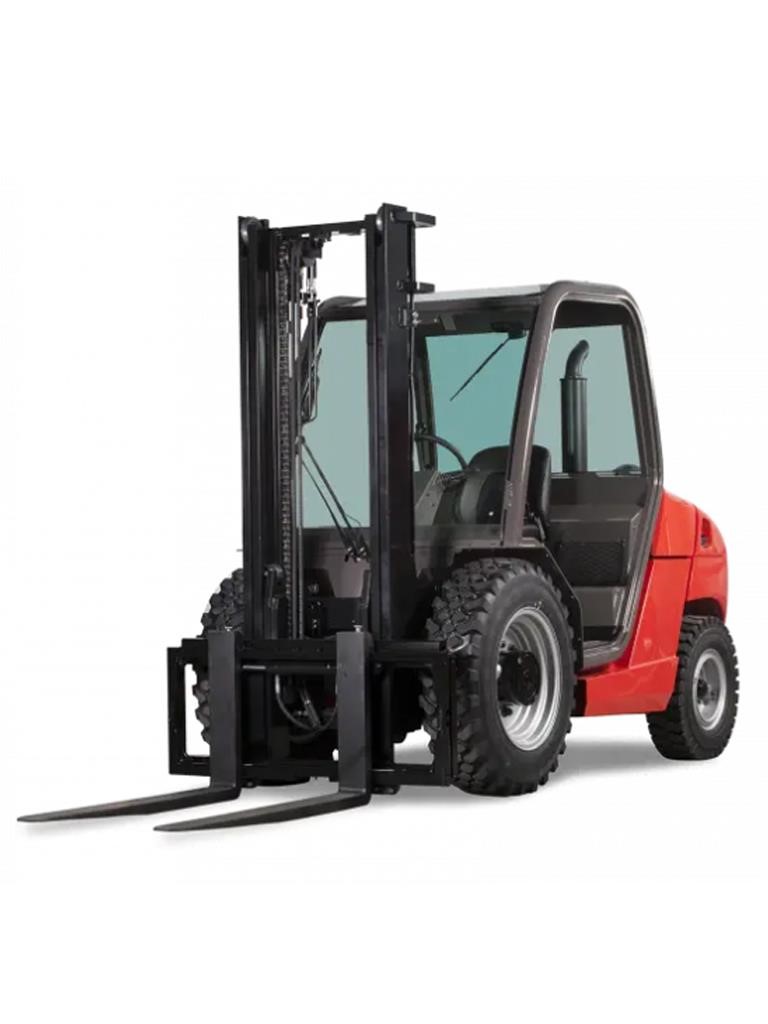

MANITOU FORKLIFT TRUCK — MH 25 3B-FT4
The MH 25 is a versatile forklift truck with unrivaled efficiency, regardless of the ground conditions. It comes equipped with 4-wheel drive and a generous ground clearance, so uneven terrain won’t be a problem. Both compact and powerful, you can store and handle loads of up to 2.5 tons even in cluttered environments. The spacious suspended driver’s cab keeps you comfortable to reduce the effects of fatigue over shifts. Access is made easier with both sides opening up and a larger handle grip whilst the relatively low bottom step makes climbing into the driver’s seat a breeze.
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
Specifications
- Wheels - Number of front wheels / rear wheels: 2 / 2
- Engine - Rated speed: 2700 rpm
- Wheels - Dimensions of front wheels: 280/80 R20 XMCL27,10 - 12 IC 30 14PR
- Engine - Engine brand / model / norm: Kubota / V2403 CR TE4
- Miscellaneous - Measured/ Guaranteed mean noise level at the ear of the operator :
- Performance - Service brake: Hydraulic
- Performance - Drawbar pull (unladen): 3550 daN / 3550 daN
- Technical Characteristics - Wheelbase: 71 in
- Dimensions - Height of towing bar (coupling height):
- Dimensions - Overall length: 159 in
- Dimensions - Ground clearance at center of wheelbase: 10 in
- Technical Characteristics - Load center of gravity: 20 in
- Dimensions - Turning radius: 129 in
- Dimensions - Tilt of Mast Forward (deg) / Backward (deg):
- Technical Characteristics - Model Name: MH 25 3B-FT4
- Technical Characteristics - Power Source: Diesel
- Engine - Fuel consumption according to VDI cycle:
- Engine - Number of cylinders / Capacity of cylinders: 4 - 149 in³
- Dimensions - Height of overhear guard (cabin): 83 in
- Dimensions - Fork carriage ISO 2328 (class/form) A/B: FEM 2A
- Miscellaneous - Workig hydraulic pressure for attachments (bar): 2466 PSI
- Dimensions - Overall height of standard overhead guard:
- Wheels - Number of drive wheels: 4
- Dimensions - Fork carriage width: 50 in
- Miscellaneous - Type of drive control:
- Performance - Lifting speed (unladen): 1 ft/s / 2 ft/s
- Dimensions - Forks section / width / length: 2 in x 4 in / 43 in
- Technical Characteristics - Operator type: Sitting
- Dimensions - Ground clearance below mast: 10 in
- Engine - Engine power according to ISO 1585: 48.6 kW
- Dimensions - Length to face of forks: 116 in
- Performance - Travel speed (laden/unladen): 9 mph / 9 mph
- Weight - Weight on front axle (laden) / rear axle (laden): 12813 lbs / 2090 lbs
- Dimensions - Internal turning radius (over types):
- Dimensions - Seat height/stand height: 40 in
- Wheels - Front wheel gauge: 46 in
- Dimensions - Aisle width for 800 x 1200 pallet lengthways: 208 in
- Weight - Weight on front axle (unladen) / rear axle (unladen): 3858 lbs / 5534 lbs
- Miscellaneous - Oil flow rate for attachments: 20 US gpm
- Technical Characteristics - Max. capacity: 5512 lbs
- Wheels - Tires type: Inflatable
- Performance - Lowering speed (unladen): 2 ft/s / 1 ft/s
- Technical Characteristics - Manufacturer: Manitou
- Weight - Service Weight: 9392 lbs
- Technical Characteristics - Load distance, center of drive axle to fork: 25 in
- Dimensions - Aisle width for 1000 x 1200 pallet widthways:
- Wheels - Dimensions of rear wheels: 27,10 - 12 IC 30 14PR
- Engine - Battery:
- Wheels - Rear wheel gauge: 46 in
- Performance - Gradeability - laden / unladen: 50 % / 48 %
- Dimensions - Overall width: 57 in
