Combilift COMBI MG

COMBI-MG — COMBILIFT MOBILE GANTRYT

The Combi-MG Mobile Gantry is the perfect solution for handling and conveying extremely large loads typical of industries such as shipping, aerospace, wind turbine, large scale civil industry, precast concrete and large scale structural steel industries.

RELIABLE AND COST EFFECTIVE

Highly customisable to fit any load handling challenge. The Combi-MG is highly adaptable to your needs and can be built to dimensions specifically to suit your application. It can be fitted with a very wide range of lifting accessories to suit any application or industry. The Combi-MG can be equipped with a rotating C-hook for handling coils, which can be operated to roll in both directions and in manual and automatic operation. With capacities ranging from 8o tonne, it’s a safe choice to go with the Combi-MG.

HIGHLY CUSTOMISABLE TO FIT ANY LOAD HANDLING CHALLENGE.

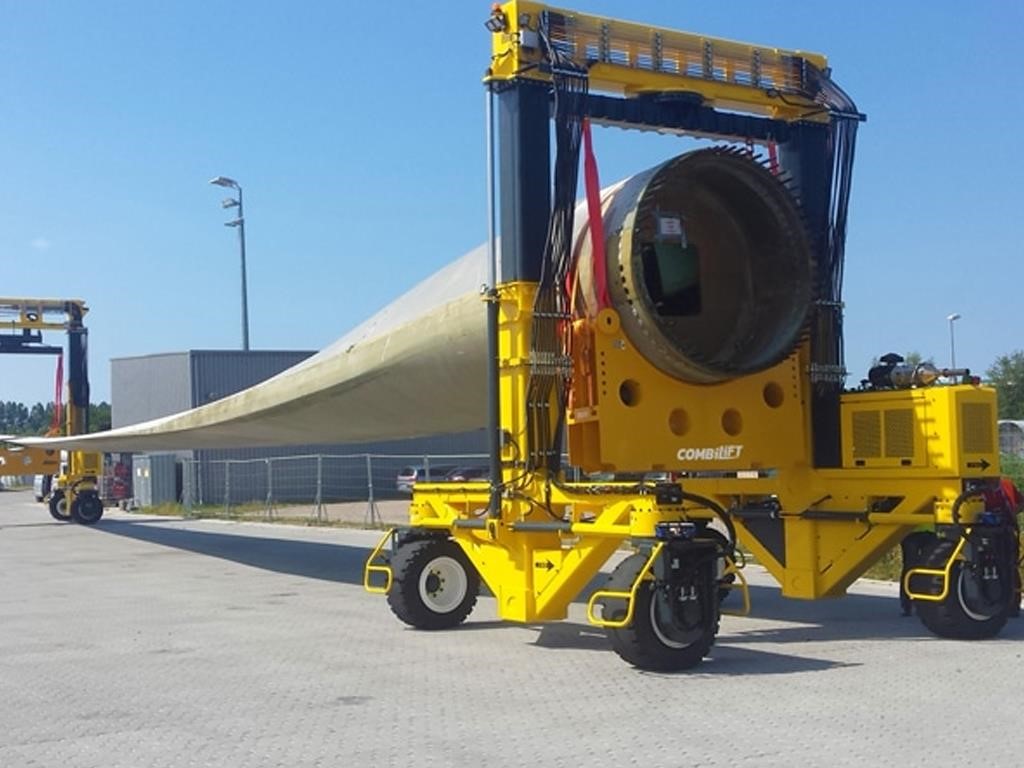

The Combi- MG can be operated in tandem mode enabling the moving of extremely long loads such as wind turbine blades or aerospace components with high levels of control and in the safest manner available. The six mode, multi-directional steering allows precise and safe transport of materials. The 6 steering options making it a highly flexible and effective method of conveyance.

THE COMBI-MG INCREASES STORAGE SPACE

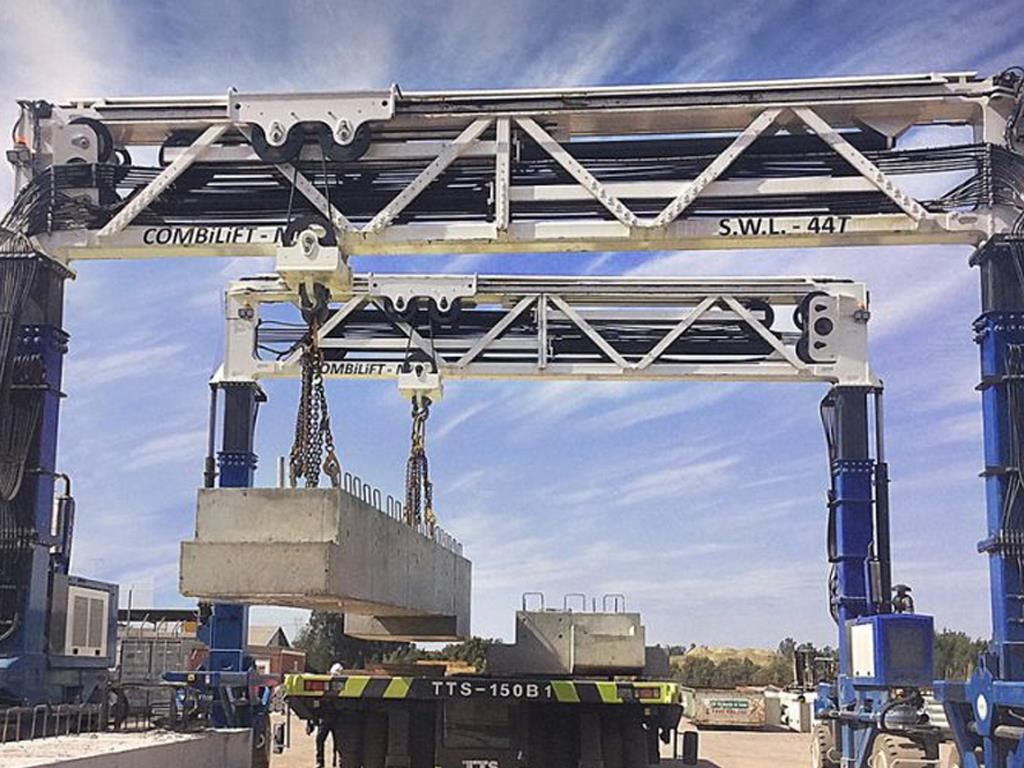

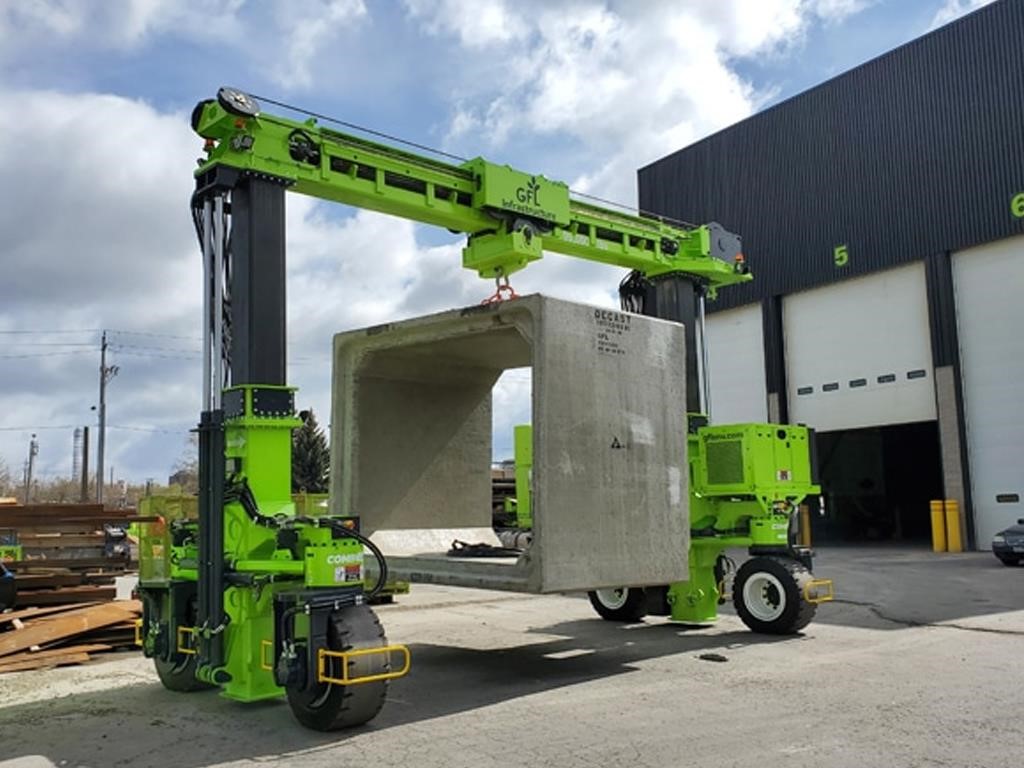

It can operate in narrow aisles, of just 1.5 m, allowing for increased storage and its ability to handle out of gauge loads including concrete castings, beams, and culverts more with greater speed and safety mean considerable savings can be achieved.

A GANTRY TO WORK IN ANY ENVIRONMENT

The combi-MG mobile gantry has a telescopic function allows loads to be raised and placed up onto trailers etc. and gives it the ability to reduce its height to enter low doorways. When moving loads of extreme size, being able to position them accurately and safely is critical for avoiding damage or injury. The Combi-MG is equipped with full side-shift to both left and right and the independent lift enables precise placement of the load. The remote control provides the operator with the ability to precisely control the gantry from a safe and advantageous viewpoint.

THE 6 STEERING MODES ARE

• Front Wheel Steer

• Rear Wheel Steer

• 4 Wheel Steer

• Crab Steer

• Carousel Steer

• 4 Way Multi-Directional

THE COMBI-MG INCREASES STORAGE SPACE

It can operate in narrow aisles, of just 1.5 m, allowing for increased storage and its ability to handle out of gauge loads including concrete castings, beams and culverts more with greater speed and safety mean considerable savings can be achieved.

A GANTRY TO WORK IN ANY ENVIRONMENT

The combi-MG mobile gantry has a telescopic function allows loads to be raised and placed up onto trailers etc. and gives it the ability to reduce its height to enter low doorways. When moving loads of extreme size, being able to position them accurately and safely is critical for avoiding damage or injury. The Combi-MG is equipped with full side-shift to both left and right and the independent lift enables precise placement of the load. The remote control provides the operator with the ability to precisely control the gantry from a safe and advantageous viewpoint.

SUITABLE INDUSTRIES

• Aluminum

• Building Materials

• Logistics

• Metals

• Plastics

• Steel

• Timber

• Warehousing

SPECIAL FEATURES

• Rubber Mounted Half Open Cabin

• 3 Wheel Hydrostatic Drive

• Load Sensing Steering

• 4 Way Lever Positioning of Wheels

• Hydraulic Oil Cooler

FEATURES INCLUDE

• The MG allows for increased storage with reduced aisle widths of just 1.5m (5’)

• Available in V3800 Kubota Diesel engine and LP Gas option

• Multi-directional, 6 steering options

• Overall dimensions can be customized to suit the customers application

• Proportional controlled remote control

• Side shift 5080mm/200”. Full side shift from left to right increases storage and flexibility

• Independent telescopic for maximum lift whilst also capable of passing under low heights

• Independent lift allows lifting and lowering of coil/load

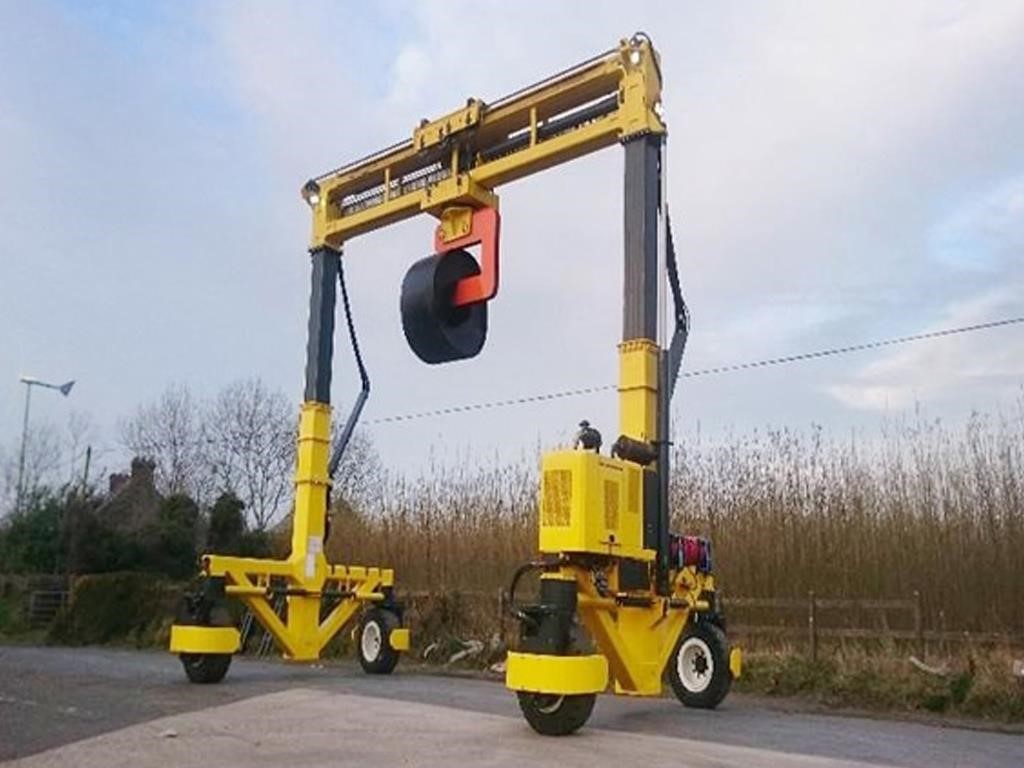

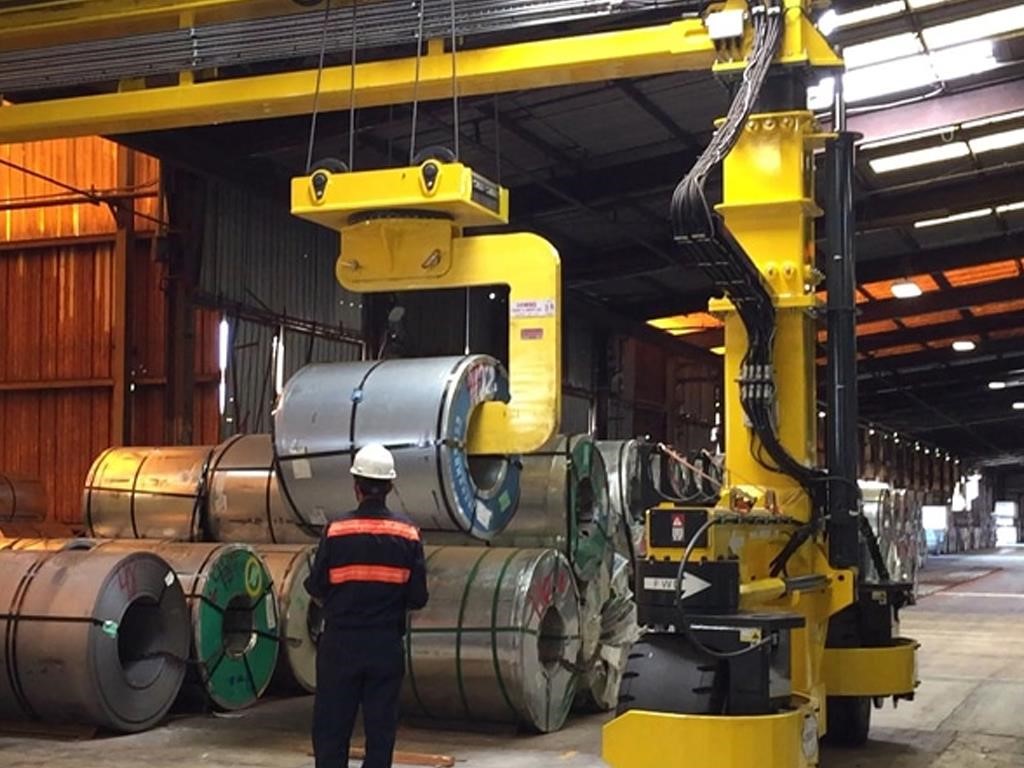

• Rotating C-Hook for handling coils in both directions and rotating, manual or automatic option

• Rated lift capacity from 20t to 100t

MACHINE OPTIONS TO INCLUDE

• All wheel drive

• Wheel bumper stops

• DAS (parking sensors)

• Blue light

• Telescopic Lift range from 1.8m to 3.6m

• Wire lift range from 1.4m to 5m

• Tier 4 final engine (AdBlue)

Similar models may be shown in addition to the featured model. Equipment may be shown with options.

Specifications are subject to change without prior notice.
